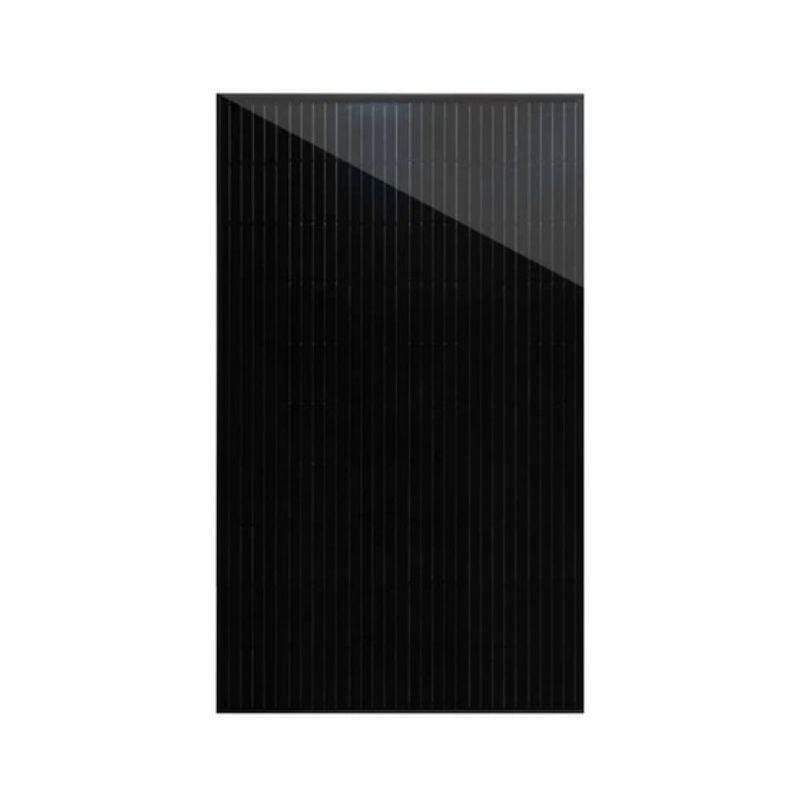

Mission Solar 310 Watt 60 Cell PV Module | MSE60A310

CERTIFIED RELIABILITY

• Tested to UL1703 standards › PID Resistant - 19.1% module efficiency

SUPERIOR AESTHETICS

• All-black design coupled with outstanding power output › Ideal for residential & commercial applications

EXCELLENT WEATHER RESILIENCE

• 3600 Pa snow load (75 psf) tested to UL1703

Technical Specs:

• Solar Cells:  P-type mono-crystalline silicon (156.75mm)
• Cell Orientation:  60 cells (6x10), 5-busbar
• Module Dimensions:  1640mm x 992mm x 40mm (64.57in. x 39.06in. x 1.57in.)
• Weight: 19.0kg (41.9lb)
• Front Glass:  3.2mm (0.126in.) tempered, low-iron, anti-reflective coating
• Frame:  Anodized aluminum alloy
• Encapsulant:  Ethylene vinyl acetate (EVA)
• J-Box:  Protection class IP67 with 3 bypass-diodes
• Cables:  PV wire, 1m (39.37in.), 4mm2 / 12 AWG
• Connector:  PV compatible

Electrical Specs:

• Module Type: MSE60A310
• Power Output Pmax: 310
• Module Efficiency: % 19.1
• Tolerance: -0 +5W
• Short-Circuit Current Isc: A 10.21
• Open-Circuit Voltage Voc: V 41.14
• Rated Current Imp: A 9.40
• Rated Voltage Vmp: V 32.97

Temp Specs:

• Normal Operating Cell Temperature (NOCT): 46.7°C(±2°C)
• Temperature Coefficient of Pmax: -0.38%/°C
• Temperature Coefficient of Voc: -0.28%/°C
• Temperature Coefficient of Isc: 0.04%/°C

Operating Conditions:

• Maximum System Voltage: 1,000VDC
• Operating Temperature Range: -40°C to +85°C
• Maximum Series Fuse Rating: 20A
• Fire Rating: TYPE 2 Front & Back Load Design load 50psf (Max. load 75psf tested to UL1703)
