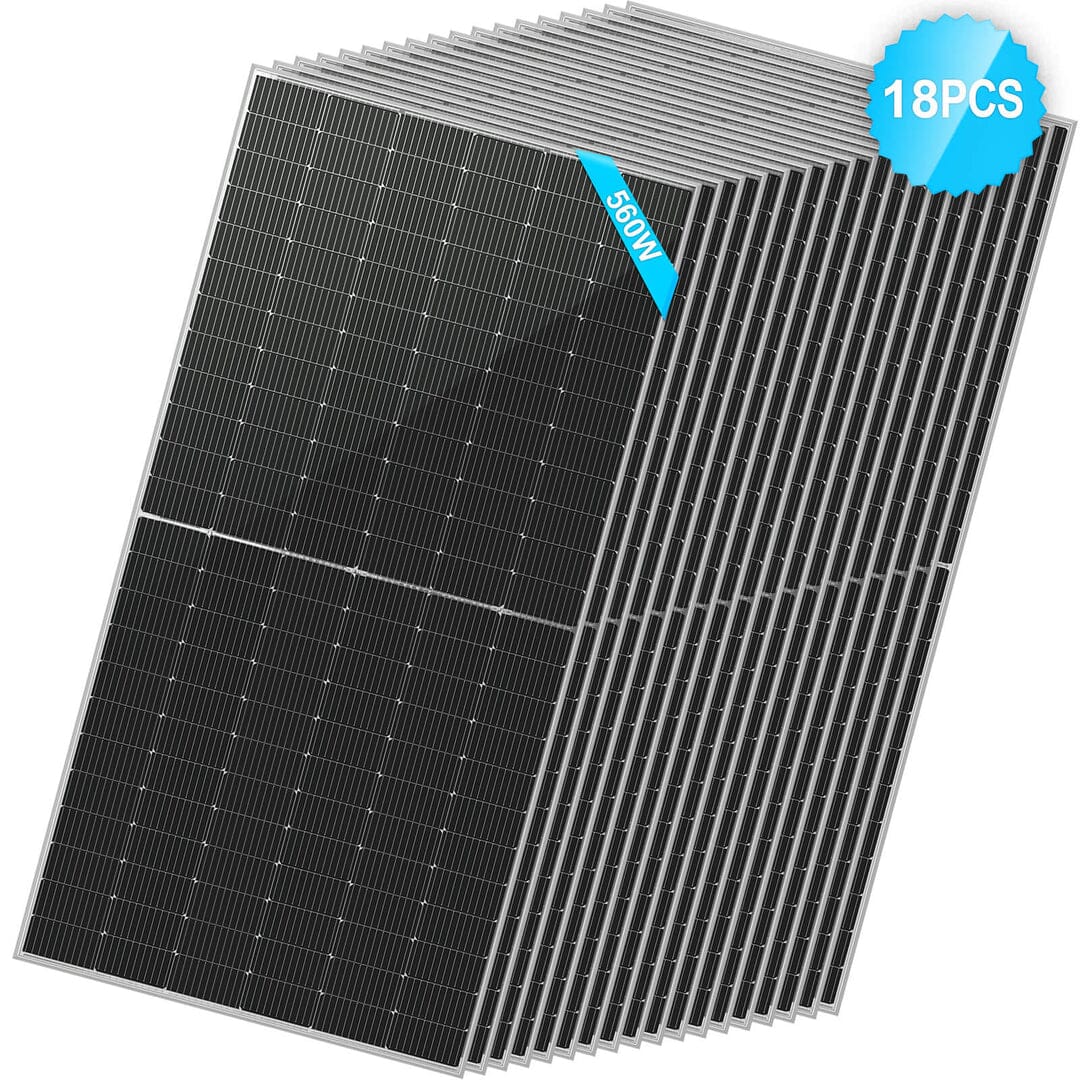

Sungold Solar Panel Highlight

Sungold Solar Panel Bifacial monocrystalline PERC can generate more energy up to 30%

Bifacial modules offer higher durability even rough climatic heat /cold/snow/wind

The space requirement for installation is less because of high efficiency

It can be set up at any angle. no need to analyse or calculate the right mounting and tilt angle

25 Years Performance warranty and 30% residential Clean Energy Credit

Sungold Solar Panel Specifications

• Model Type SG-560WBG
• Peak Power (Pmax) 560W
• Production tolerance ±3%
• Maximum Power Current (Imp) 13.3A
• Maximum Power Voltage (Vmp) 42.1V
• Short Circuit Current (Isc) 14.09A
• Open Circuit Voltage (Voc) 50.09V
• Maximum System Voltage 1500V
• Wind Resistance 2400Pa
• Output Cables 12 AWG (1ft per cable)
• Number of Cells 144(6x 24),60 cells in series
• Cell Type PERC Monocrystalline (7.2x 3.6 in)
• Certifications CE TUV
• Product Weight 67.9lbs
• Product Dimension 89.8*44.7*1.4inch
• Package Weight 128.7lbs2PCS
• Package Dimension 92.5*47.6*3.1inch2PCS
• Performance 5 year 95% output warranty 10 year 90% output warranty 25 year80% output warranty
• Material and workmanship warranty 10 year material and workmanship warranty
