RICH 400W Mega Solar Panel Features:

Features

• 9 buss bar solar cell configuration
• Mono PERC Technology
• Lightweight anodized aluminum frame
• High Transmission, AR (anti-reflective) Coated Tempered Glass
• Plug and play junction box
• Industry standard quick connect cables work in series or in parallel
• Certified to withstand challenging environmental conditions
• Excellent low light performance on cloudy days, mornings and evenings

Installation

• Easy installation and handling for various applications (high-end off-grid and mobile applications)
• Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts and tilt mounts
• Compatible with on-grid and off-grid inverters

Warranty

• 25 year limited power output

SPECIFICATIONS

• Maximum Power(Pmax) 410W
• Maximum Power Voltage(Vmp 31.3V
• Maximum Power Current(Imp) 13.1A
• Open Circuit Voltage(Voc) 31.7V
• Short Circuit Current(Isc) 13.8A
• Maximum System Voltage(Vmax) 1500VDC
• Temperature Range -40°F ~ 185°F
• Max Series Fuse Rating 25A
• Weight 45.2 lb
• Dimensions 67.9 x 44.6 x 1.2 in

Mega 335 Watt Monocrystalline Solar Panel | High Efficiency

Features:

• 5 buss bar solar cell configuration
• Mono PERC Technology
• Lightweight anodized aluminum frame
• High Transmission, AR (anti-reflective) Coated Tempered Glass
• Plug and play junction box
• Industry standard quick connect cables work in series or in parallel
• Certified to withstand challenging environmental conditions
• Excellent low light performance on cloudy days, mornings and evenings

Installation

• Easy installation and handling for various applications (high-end off-grid and mobile applications)
• Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts and tilt mounts
• Compatible with on-grid and off-grid inverters

Warranty

• 25 year limited power output

Built-in Components

• RICH SOLAR 335 watt monocrystalline solar panel
• Panel leads (pair): 3 feet each
• IP65 rated waterproof junction box
• IP67 rated waterproof solar connectors
• Bypass diodes built-in the junction box

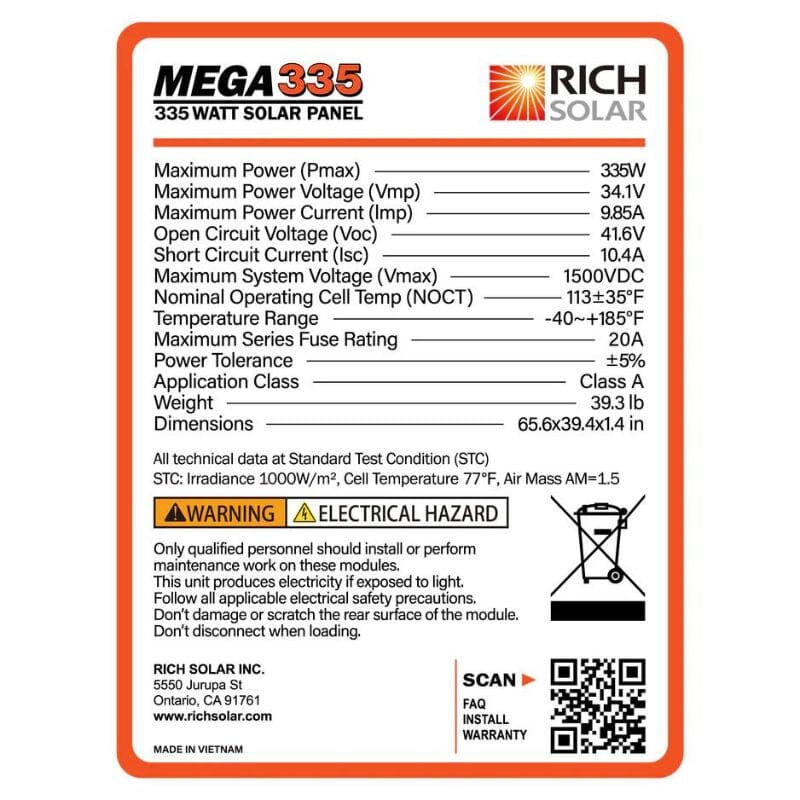

Specifications

• Maximum Power(Pmax): 335W
• Maximum Power Voltage(Vmp): 34.1V
• Maximum Power Current(Imp): 9.85A
• Open Circuit Voltage(Voc): 41.6V
• Short Circuit Current(Isc): 10.4A
• Maximum System Voltage(Vmax): 1000VDC
• Temperature Range: -40°F ~ 194°F
• Max Series Fuse Rating: 20A
• Weight: 40.5 lb
• Dimensions: 65.2 x 39.2 x 1.57 in
