The Li 30A PWM Solar Charge Controller is the perfect solution for those looking to regulate and optimize their solar panel's energy. Best for 12V or 24V systems, this charge controller can handle up to 30 amps of power, ensuring that your battery stays protected from overcharging and over-discharging. Whether you're using your solar panels for a remote cabin, RV, or even just for backup power at home, this charge controller provides peace of mind and efficient energy management.

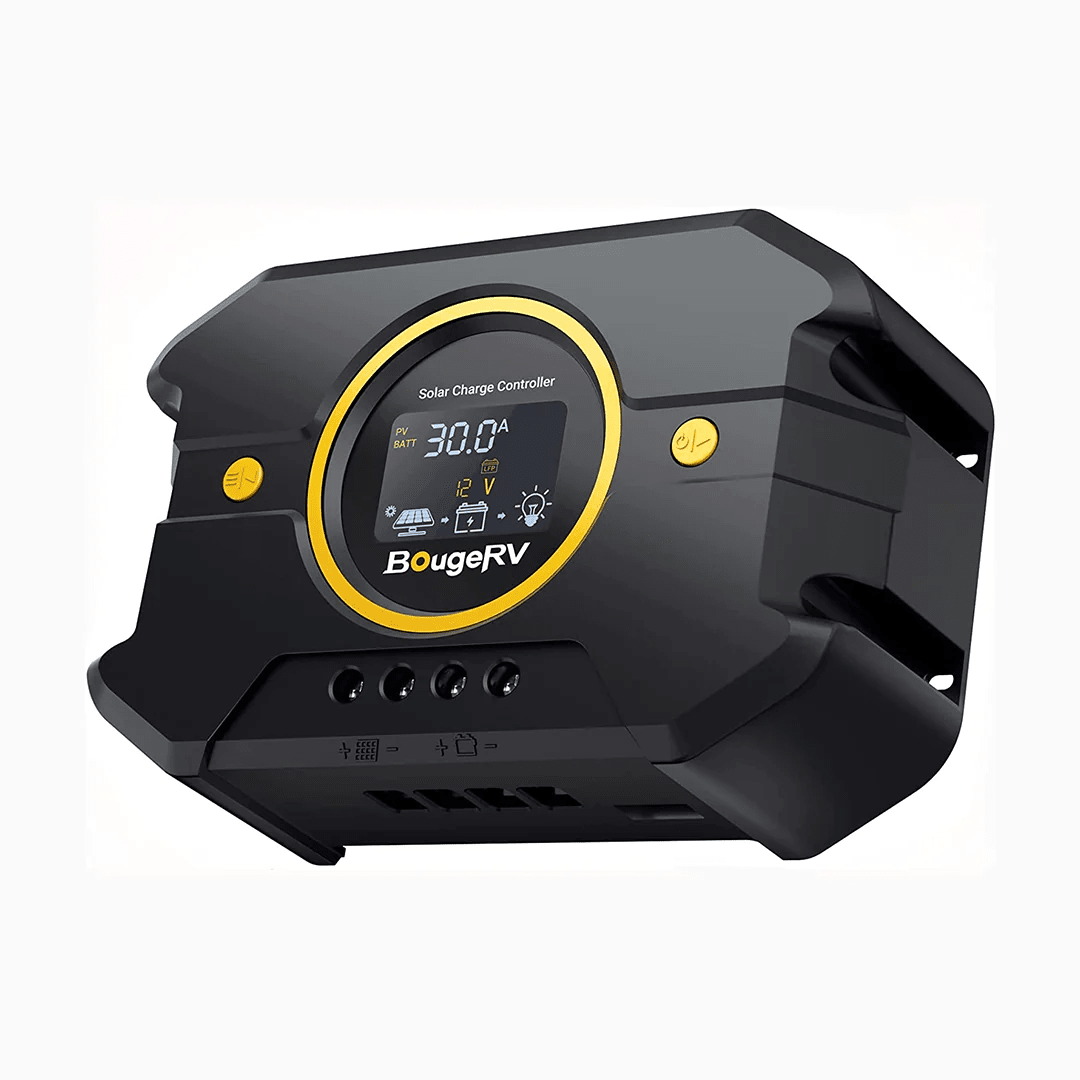

BOUGERV 30A PWM SOLAR CHARGE CONTROLLER

1. This intelligent regulator serves as an essential battery maintainer and protector for your solar system.
2. The ACTIVE SHIELD feature of this solar panel regulator is designed with clear and specialized icons for various Lithium batteries on the LCD screen, including LFP for LiFePO4, Li for Ternary Lithium battery, and LTO for Lithium-Titanium-Oxide.
3. With real-time value cycles every 3 seconds, the 30A solar panel regulator displays the PV input current and battery voltage on the main interface, making it easy to read even in dim light with its backlit display.
4. Li 30A PWM Solar Charge Controller is designed to keep your wiring neat with 6 spade terminals that can crimp the bare end of the solar cable for compatibility with solar cables in 12awg to 10awg.

PRODUCT SPECIFICATIONS

• SKU ISE136
• System Voltage 12V/24V
• Working Temperature -31°F113°F
• Maximum PV Input Voltage 55V
• Protection level IP32
• Maximum PV Input Power 450W/12V; 900W/24V
• Dimensions 5.92*3.95*1.92 inches
• Rated Current 30A
• Screen dimensions 1.57*1.18 inches
• Screen Type Color
• Net weight 0.8 lb
• Backlight Display Time 15s off without operation
• Drill Hole Size 0.12*0.07 inches
