Renogy 400 Watt 12 Volt Solar Premium Kit W/MPPT or REGO Solar Charge Controller

The Renogy 400W 12V Premium Kit is easy for you to install, and it is the most economical choice for the off-grid adventurer. Renogy Solar Kit comes with solar panels, charge controllers, and needed electrical wiring, fuses, and monitoring typically required for an off-grid installation, making it an ideal choice for both off-grid and mobile solar power applications.

The Premium Kit will produce an average of 1.6-2.5kWh of electricity per day (depending on sun availability). The 4 x 100W solar panels don't take up much roof space, but their energy can offset small and medium-size loads such as lighting, television, and coffee maker. The Premium Kit can build a reliable and environmentally friendly power supply, perfect for all rooftops, RVs, boats, or campers. It can also be installed in a ground mount system as a power supply for outdoor appliances, emergencies, and a stand-alone power system.

What's Included With Your Order?

• 4 x 100W Mono Solar Panel
• 1 x  Rover Li 40A MPPT Charge Controller 40A Charge Controller
• 1 x 20ft 10AWG AK 2ft 8AWG Fuse Cable 8ft 8AWG Tray Cable
• 4 x Mounting Z Brackets (Set) Mounting Z Brackets (Set)
• 1 x BT-1 Bluetooth Module BT-1 Bluetooth Module
• 1 x 10A In-line Fuse and 40A ANL Fuse 10A In-line Fuse and 40A ANL Fuse
• 3 x Solar Y Branch Connectors MMF+FFM Pair Solar Y Branch Connectors MMF+FFM Pair
• Free Shipping

• Lifetime Customer Support (Email, Live Chat & Phone)

Efficient Performance

By bypassing the shaded cells with poor performance, the bypass diode minimizes the power drop caused by the shadow to ensure excellent performance in low-light environments.

Full System Protection

Meant to safeguard your system, the self-diagnostic capability can assess and protect against reverse polarity, battery overcharging, battery over-discharging, overload, short-circuiting, and reverse current.

Auto Detect and Powerful Compatibility

Automatically detects 12V or 24V DC system voltages, and the LCD screen and multiple LED indicators display the solar charging and battery operation information, customizable parameters, and error codes.

Solid Quality

Advanced encapsulation material with multi-layered sheet laminations to protect cells from physical damage or distortion, improving cell performance and providing a long service life. EL tested, no hot-spot heating is guaranteed.

No Fear of Weather Challenge

The IP65 Junction Box offers complete protection against environmental particles and low-pressure water jets. These IP67 waterproof solar connectors ensure that the water and dust will not enter the connector during extended outdoor use. Effectively preventing water from seeping in.

Ready to Install

Pre-drilled holes on the back frame allow quick installation. The kit has a complete set of accessories and is equipped with an In-line fuse and ANL fuse components to offer more protection.

RENOGY 100W MONOCRYSTALLINE SOLAR PANEL

• Maximum Power: 100W
• Maximum System Voltage: 600V DC (UL)
• Open-Circuit Voltage (Voc): 24.3V
• Optimum Operating Voltage (Vmp): 20.4V
• Short-Circuit Current (Isc): 5.21A
• Optimum Operating Current (Imp): 4.91A
• Dimensions: 41.8 x 20.9 x1.4 in
• Weight: 14.1lbs/6.4kg

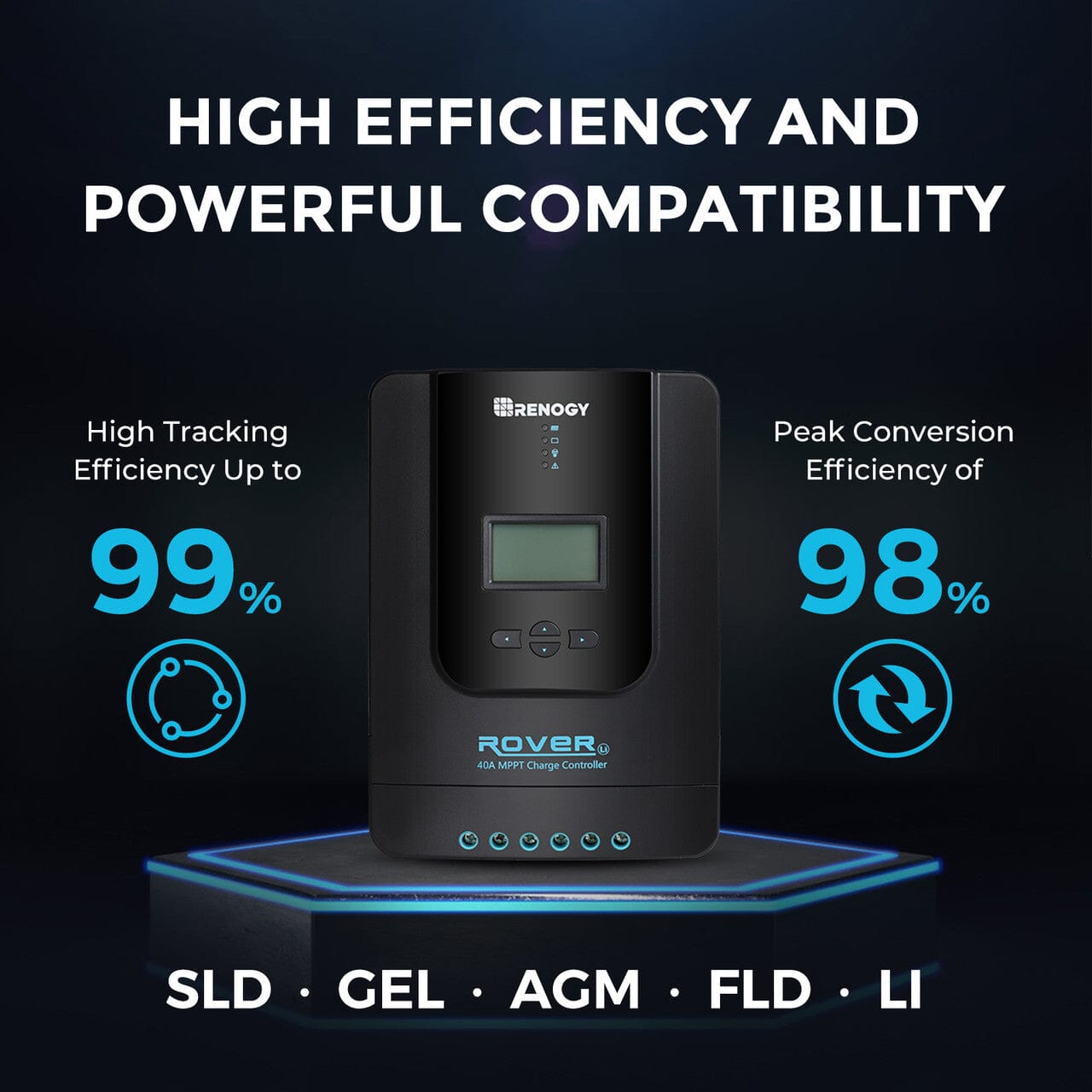

ROVER LI 40A MPPT CHARGE CONTROLLER

• Nominal System Voltage: 12V/24V Auto Recognition
• Rated Charge Current: 40A
• Max. PV Input Voltage: 100 VDC
• Max. PV Input Power: 12V/520W, 24V/1040W
• Max Battery Voltage: 32V

RENOGY 8FT 8AWG TRAY CABLES (A PAIR)

• Rating Voltage: 600/1000V
• Length: 8ft
• Wire Gauge: 8AWG
• Temperature: -40°F to +185°F

2FT 8AWG ANL FUSE CABLE

• Length and Wire Gauge: 2ft and 8AWG
• Rating Voltage: AC Uo/U 0.6/1 KV, DC 1.8KV
• Temperature: -40°F to +194°F

RENOGY 20FT 10AWG SOLAR ADAPTOR KIT (A PAIR)

• Length: 20ft
• Wire Gauge: 10AWG
• Rating Voltage: 600/1000V
• Temperature: -40°F to +185°F

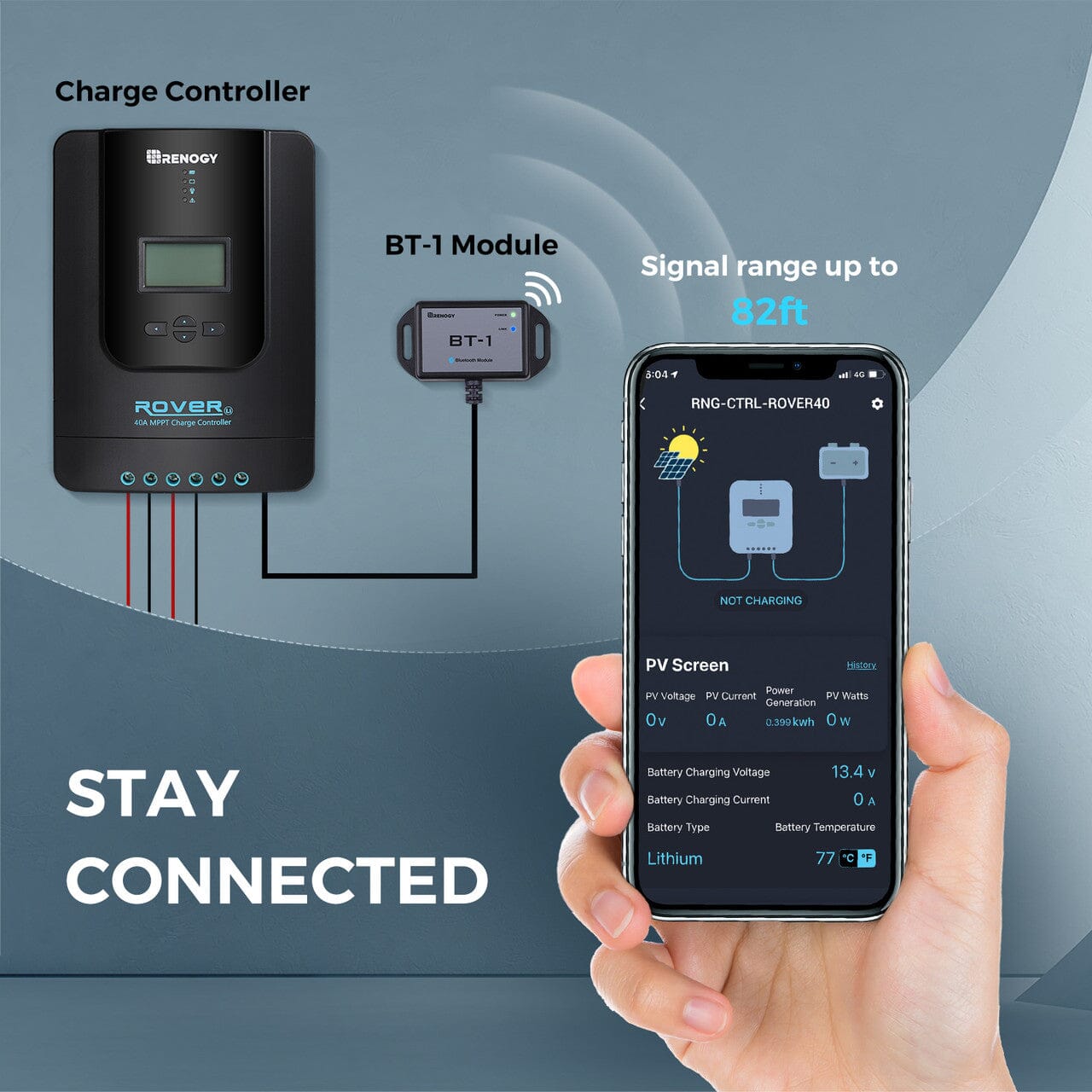

BT-1 BLUETOOTH MODULE

• Input Voltage: 5V
• Communication Range: ≤82ft
• Compatible Models: All Renogy Controllers with RJ12 port
• Operation Temperature: -20℃~85℃-4°F to 185°F

RENOGY 10A IN-LINE FUSE HOLDER W/FUSE

• Rated Current: 10A
• Rated Voltage: 1000 V DC
• Contact Material: Copper, Silver Plated
• Replaceable Fuse: Cylindrical PV Fuse (10x38mm)

ANL 40A FUSE SET

• Current Rating: 40A
• Voltage Rating: 72V
• Interrupt Capacity: 80A

SOLAR Y BRANCH CONNECTORS

• Withstanding voltage: 1000V DC(TUV), 600V(UL)
• Rated Current: 50A
• Protection Degree: IP67, mated
• Temperature : -40°F to +194°F
• Protection Class: Class II

MOUNTING Z BRACKETS (SET)

• Eight Long Cap Bolts and Four Short Bolts: Four Spring Washers and Four Washers
• Four Z Shape Solar Panel Brackets: Four Nuts

WARRANTY INFORMATION

• Panels: 25-year power output warranty: 5 year 95% output warranty, 10 year 90% output warranty, 25 year 80% output warranty 5-year material and workmanship warranty
• Accessories: 1-year material and workmanship warranty

Still Have Questions? Give us a call today 1-877-242-2792
