Jackery Explorer 5000 Plus offers powerful, eco-friendly home backup with 5-60kWh capacity and dual voltage output (120V/240V). It supports various appliances during outages with 12 output ports, 7.2-14.4kW power, and a 0ms UPS switch for seamless operation of essential devices like fridges, computers, home servers, routers, and ventilators. Smart app control and multiple charging options add convenience, while its zero-emission design ensures safe indoor use.

• 5-60kWh Capacity & 7.2-14.4kW Output for reliable home backup power lasting up to 2 weeks.
• 120V/240V dual voltage enhances compatibility, supporting more loads like dryers, water pumps, ovens, ACs, EVs, RVs, etc.
• Fully charges in 1.7 hours, compatible with AC, high-voltage PV (4000W), low-voltage PV (1200W), and more.
• UPS 0 ms switchover for uninterrupted power to essential devices.
• Jackery Explorer 5000 Plus: Next-gen LiFePO4 battery lasts over 10 years, including a 5-year warranty + 2 optional years.
• ChargeShield 2.0 for advanced protection and efficient charging.
• Smart App Control: Remotely monitor and manage power usage, with scheduled charge/discharge settings for efficiency.
• Compact & Quiet Design: Features optimized CTB structure, equipped with wheels and a pull handle, maintaining a low noise level of just 30 dB.

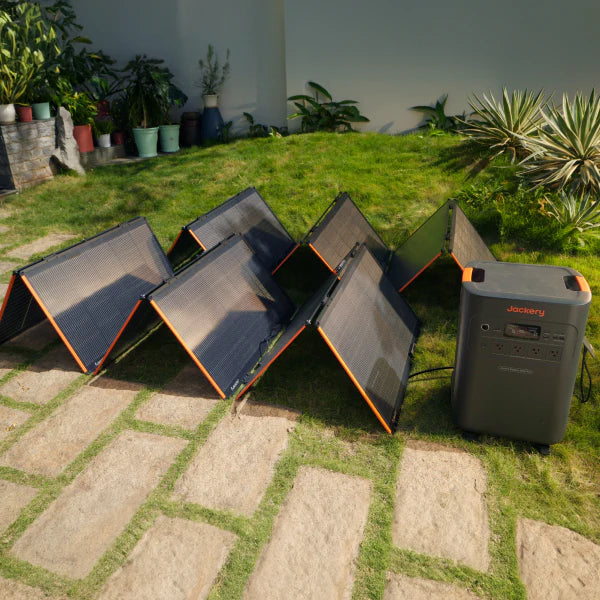

• Solar Integration: Connects with Jackery 500X solar panels, 25% higher efficiency.
• Founded in 2012 in California, Jackery has earned the trust of over 4 million users and received more than 150,000 positive reviews.

Jackery E5000 Plus - Key Features & Specifications

Battery

• Capacity: 5040Wh (45Ah/112V DC)
• Cell Chemistry: LiFePO₄ (Lithium Iron Phosphate)
• Cycle Life: 4000+ cycles to 70%+ capacity

Ports & Power Output

• AC Total Output: 7200W Max, 14400W Surge
• AC Outputs:
  • (NEMA L14-30R/14-50) 120V/240V~60Hz, 30A, 7200W Max
  • (x4) 120V, 20A, 2400W
• USB Outputs:
  • (x2) USB-A: 18W Max (5V-12V)
  • (x2) USB-C: 100W Max (5V-20V)
• DC Outputs:
  • Cigarette Lighter Port: 12V⎓10A
  • AC Expansion Port: 240V~60Hz, 30A, 7200W
  • DC Expansion Port: 80.5V-126V⎓41A Max
• Charging Inputs:
  • AC Input (Charge Mode): 120V~60Hz, 15A Max
  • AC Input (Bypass Mode): 120V, 12A Max / 240V, 16.7A Max
  • DC Expansion Port: 80.5V-126V⎓98A Max
  • High-PV Input: 135V-450V⎓15A Max
  • Low-PV Input:
    • 2 x DC 8mm Ports: 16V-60V⎓10.5A Max, Double to 21A/1200W Max
    • 11V-16V (Working Voltage)⎓8A Max, Double to 8A Max

Charging Time (0-100%)

• AC Adapter: 3.5 Hours
• Solar Panels:
  • 2 x SolarSaga 500W (1000W): 6.5 Hours

Dimensions & Weight

• Weight: 134.5 lbs (61 kg)
• Height: 16.5 in (41.8 cm)
• Width: 15.5 in (39.5 cm)
• Length: 25 in (63.5 cm)

General Specs & Features

• Warranty: 5 Years
• Operating Temperatures:
  • Charge: 0°C45°C (32°F113°F)
  • Discharge: -15°C45°C (5°F113°F)
• UPS Function:
  • Backup UPS: 20ms
  • Online UPS: 0ms
• Inverter Topology: Non-isolated
• Power Factor: ≥0.98

Still have questions? Give us a call at 877-242-2792
