BougeRV provides an exceptional solution for streamlining the wiring process and enhancing the efficiency of solar panel installations with their innovative 5 to 1 MC4 Connector. This connector is specifically designed to seamlessly integrate with MC4 solar cables, ensuring a dependable and secure connection throughout the system.

By employing the 5 to 1 configuration, BougeRV's MC4 Connector empowers users to conveniently link up to five solar panels to a single output point. This remarkable feature significantly reduces the number of cables and connections needed, simplifying the overall installation process and optimizing the system's performance.

HIGHLIGHTS

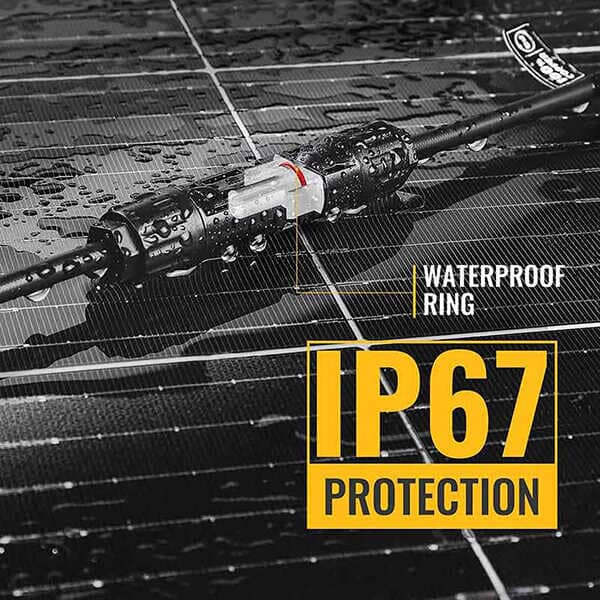

1. Main Technical Specification: -Rated Current:30A -Rated Voltage: DC1000V The waterproof ring on connection is perfect to seal out water and dust to prevent corrosion Suitable Single Core Cable Section: 1.5mm² -- 6mm² Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument
2. Package included Solar Y Connector Solar Panel Parallel Connectors Extra Long 5 to 1 Cable

PRODUCT SPECIFICATIONS

• SKU ISE155
• Rated Current 30A
• Rated Voltage DC1000V
• Contact Resistance ≤0.2mΩ
• Insulation Resistance >500mΩ
• Operating Temperature range -40℉ until+221℉
• Degree of Protection IP67
• Flame Class UL94-V0
• Safety Degree Ⅱ
• Suitable Single Core Cable Section 1.5mm² -- 6mm² ( include AWG14, AWG13,AWG12, AWG11,AWG10 )
