Renogy Wanderer 10A Charge Controller | RNG-CTRL-WND10

The Renogy 10A Wanderer solar charge controller integrates efficient PWM charging to increase battery life and improve system performance. With a simple interface for ease of use, this controller comes equipped with fully comprehensive self-diagnostics and electronic protection functions to prevent damage from installation mistakes or system faults. Designed for off-grid solar applications, this advanced charge controller is compatible with various types of 12V/24V batteries, including Lithium!

Note: Please set the voltage manually to charge lithium batteries.

KEY FEATURES

• Optimized for a 12V/24V system; Deep cycle Sealed (AGM), Gel, Flooded and Lithium battery option ready.

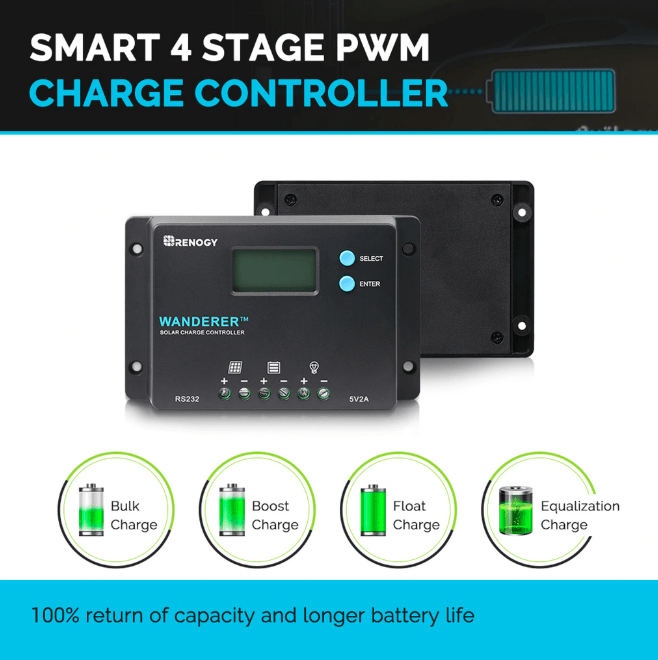

• Smart 4 Stage PWM charging (Bulk, Boost, Float, and Equalization) increases battery life and improves system performance. Intelligent protection against reverse polarity, overcharging, short-circuit, and reverse current.
• Backlit LCD screen for displaying system operation, diverse load control and error codes.
• Integrated 5V 2A USB ports to charge USB devices.
• Compact in size makes it easy to install virtually anywhere.
• Capable of charging over-discharged lithium batteries.
• Integrated RS232 port allows communication with and usage of Renogy BT smartphone app.

WANDERER 10A PWM CHARGE CONTROLLER

• Nominal Voltage: 12V/24V Auto Recognition for non-lithium batteries
• Rated Charge Current: 10A
• Max Gauge Size: Up to 12AWG
• Max. PV Input Voltage: 50 VDC
• Self-Consumption: <10mA
• Working Temperature: -31°F - 113°F / -25°C - 45°C
• Dimensions: 4.7 x 3.0 x 1.1 in / 119x75x27.5mm
• Weight: 0.27 lbs / 122.47g
• Storage Temperature: -31°F - 176°F / -35°C - 80°C
• Temperature Compensation: -3mV/°C/2V
• Max PV Input: 130W / 12V; 260W / 24V
• Certification: CE / ROHS

WARRANTY INFORMATION

• Accessories: 2-year material warranty
