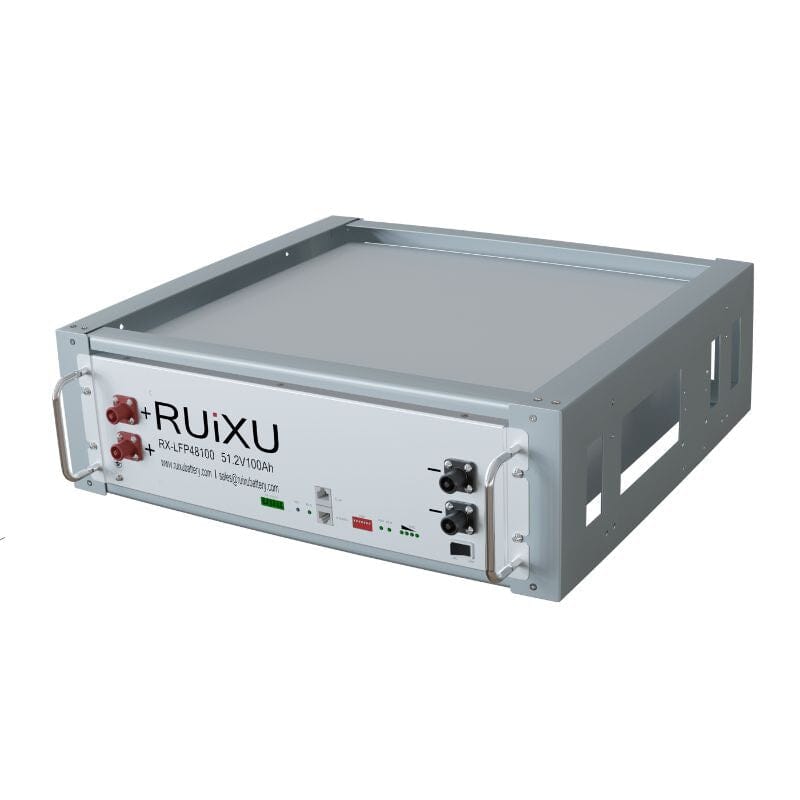

RUIXU 51.2V100A 5120Wh | 19" Rack Mounted 3U Module

RUiXU battery packs are rack type residential lithium batteries,designed entirely for residential ESS applications,with our battery technology ,you can easily combine it with a mainstream inverter in different scenarios to save your electrical bill & back up your power during grid outage or unavailable.

Why Choose RUiXU Server Rack Battery?

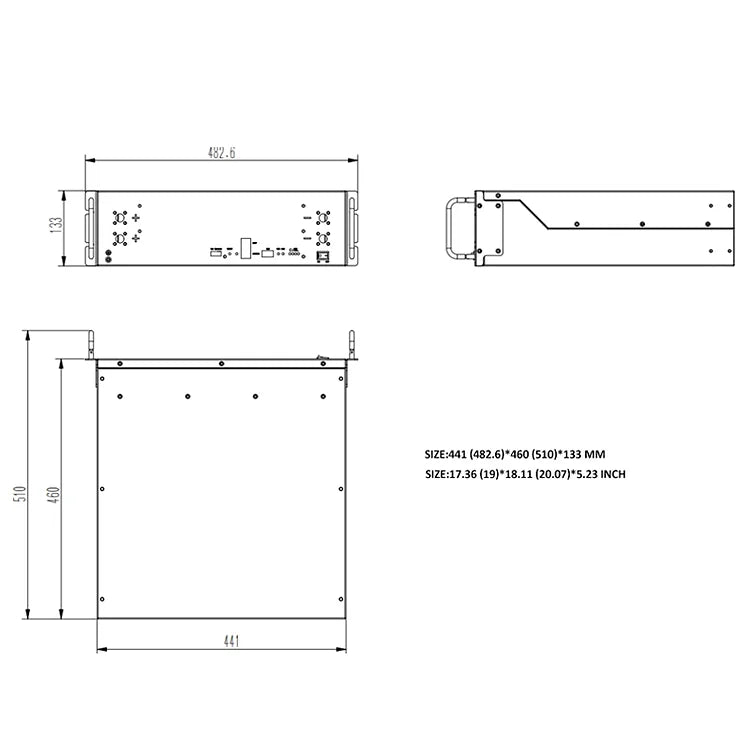

• Size (Ultra-thin) 3U Size(482x460x133.5mm),133mm height will save more space, compact & flexible
• Installation Rack Mounted, Floor Mounted, Wall Mounted, Stack Mounted
• Inverter Protocol Choosing Use DIP address to set the RS485 baud rate and inverter protocol choosing
• Modular Support up to 32units in parallel, extend to 160KWh system without additional controller
• Certification UL1973 &IEC62619 for whole battery pack ,UN38.3,MSDS
• Pre-charge ability(single battery) 1000000uF,capable of pre-charging higher power inverters
• Working Temperature Charge:-5°C-59°C Discharge:-10°C-59°C,built-in heater is optional

What's Included With Your Server Rack battery Order?

• 1 x RUiXU 48V Server Rack battery (RX-LFP48100)
• 1 x RS485 Communication Cable
• 1 x Ground Cable
• 1 x Set of Parallel 4AWG Cables per battery
• Lifetime Customer Support (Email, Live Chat & Phone)

Modular

Support up to 32 units in parallel, scale from 5 kWh to 160 kWh configuration without external controller

4 types of installation

Optional bracket kits for different installation senarios

3U Model

Server Rack battery has 3U (133mm) standard height design

Inverter Protocol Choosing

Use DIP address to set the RS485 baud rate and inverter protocol choosing

Certification

CE/IEC62619 / UL1973 / UN38.3

Note: Assembly of rack is required

Still Have Questions? Give us a call today 1-877-242-2792
