DCC50S 12V 50A DC-DC On-Board Battery Charger with MPPT | RBC50D1S-G1 + Free Shipping

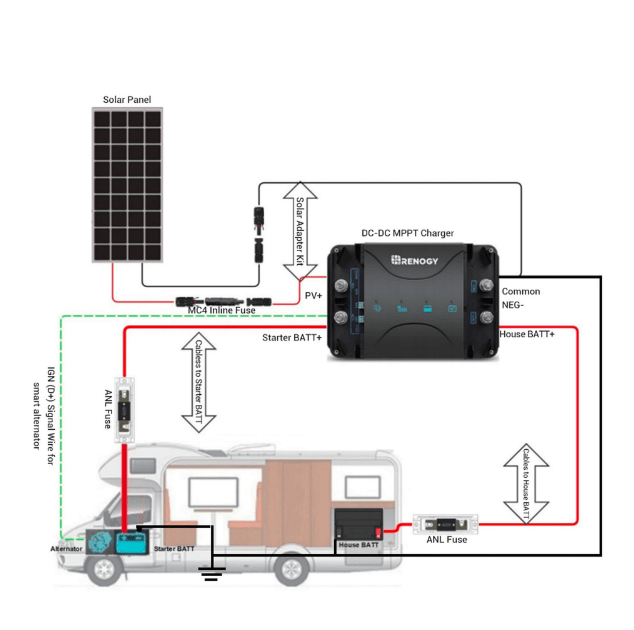

Renogy's DC to DC MPPT on-board Battery Charger is designed to give you options! This multi-stage, multi-input battery charger can charge a service battery from a starting battery linked to an alternator or by utilizing solar panels connected directly to the unit. While your vehicle's alternator prioritizes your starting battery, this unit will allow your solar system to charge your service battery first! It's the smart way to keep yourself fully charged and off-grid longer!

And with multi-stage charging and multi-chemistry functionality, Renogy's DC to DC MPPT Charger has you covered whether you're using Flooded, Gel, AGM, or Lithium batteries. With RJ45 communication port featured, you can unlock monitoring features exclusively using the BT-2 Bluetooth Module and Renogy DC Home App, control and monitor the device remotely through your phone in real time.

DCC50S 12V 50A DC-DC On-Board Battery Charger with MPPT Benefits:

• Designed to charge service batteries from two DC inputs—solar panels and alternator.
• Built-in Maximum Power Point Tracking (MPPT) to maximize the solar power.
• 3-phase charging profile (Bulk, Boost, and Float) ensures your service battery will be accurately charged at the correct voltage levels to 100%.
• Built-in Voltage Sensitive Relay (VSR) for easy setup with traditional alternators.
• Compatible with smart alternators (with variable output voltage).
• Trickle charges the starting battery via solar panels if the service battery is fully charged.
• Isolation of the starting battery and the service battery.
• Temperature and voltage compensation features prolong battery life and improve system performance.
• Smart Protection Features: battery isolation, over-voltage protection, battery temperature protection, over-current protection, overheat protection, reverse current protection, solar panel and alternator reverse polarity protection.
• Compatible with multiple battery types: AGM, GEL, Flooded, and Lithium.
• Compact with a sturdy design, it was built tough for all conditions.

What's Included with your order?

• Battery Charger X 1
• Battery Temperature Sensor X 1
• IGN Signal Wire X 1
• RS485 Communication Cable X 1
• Free Shipping

Specifications

DCC50S 12V 50A DC-DC ON-BOARD BATTERY CHARGER WITH MPPT

ELECTRICAL PARAMETERS

• System Voltage: 12VDC
• Battery voltage Range: 9-16VDC
• Maximum Charging Current: 50A
• Battery Types: SLD, GEL, FLD, LI,USER
• Service Battery Charging Mode: MPPT
• Charging Efficiency: Up to 97%
• Max. Solar Input Voltage: 25V
• Max. Solar Input Power: 660W @ 50A
• Alternator Input Voltage: Traditional Alternator: 13.2-16VDC ; Smart Alternator (Euro 6): 12-16VDC
• Max. Alternator Input Power: 660W @ 50A
• Self-consumption: 60mA

MECHANICAL SPECIFICATIONS

• Ground Type: Negative
• Terminal Size: M8*1.25 - 10mm
• Temperature Compensation: -3mV/C/2V
• Operating Temperature Range: -31°F - 149°F
• Storage Temperature Range: -40°F - 176°F
• Operating / Storage Humidity: 0%-95%, No Condensation
• Dimensions: 9.6*5.7*3.0in
• Weight: 3.13Ibs
• Communication Protocol: RS485

CERTIFICATIONS

• CE: YES
• ROHS: YES
• FCC Part 15 class B: YES

WARRANTY

• Material and workmanship warranty: 2 Year
