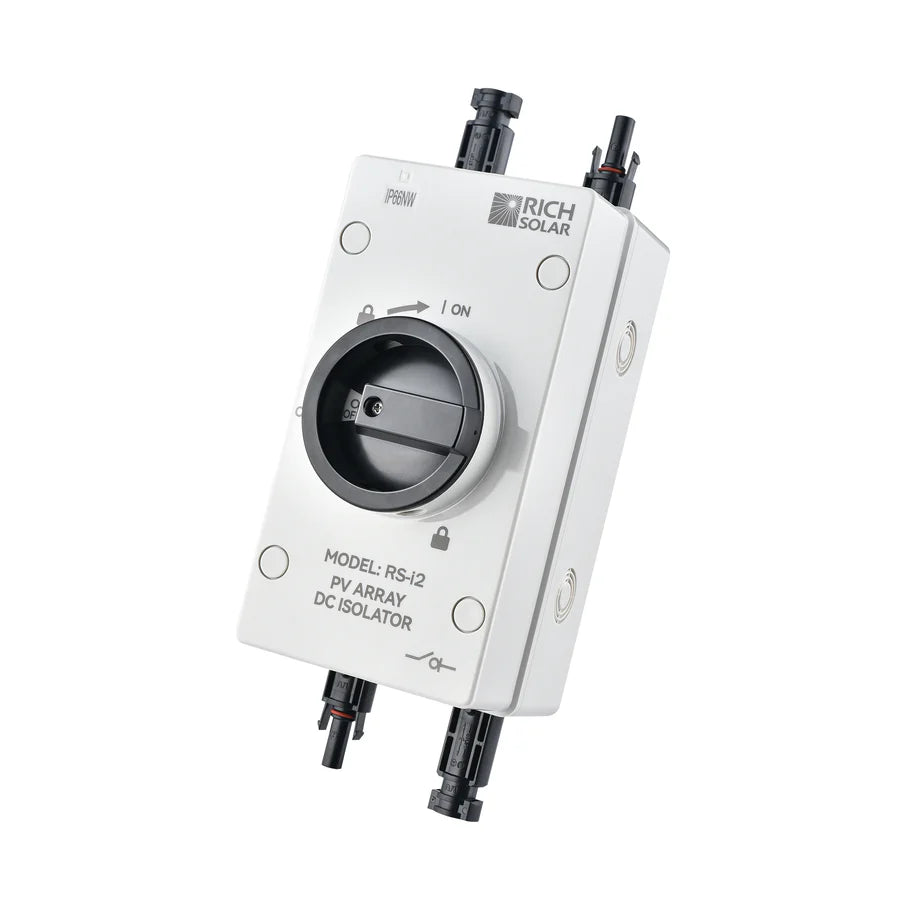

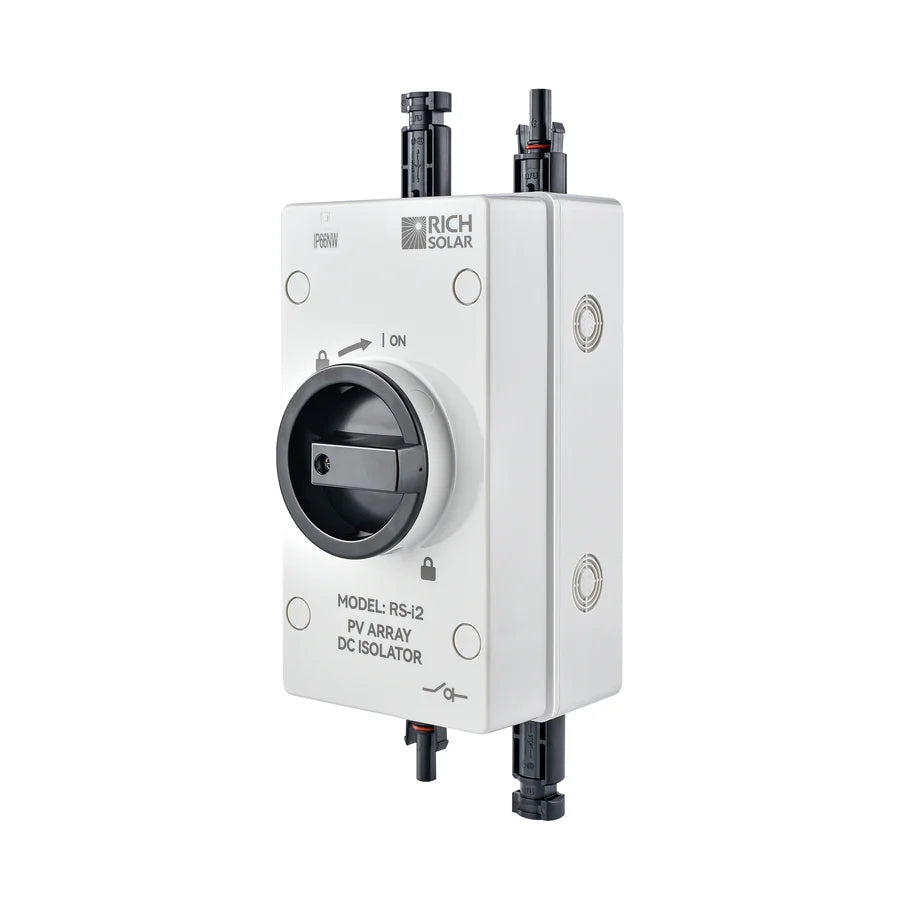

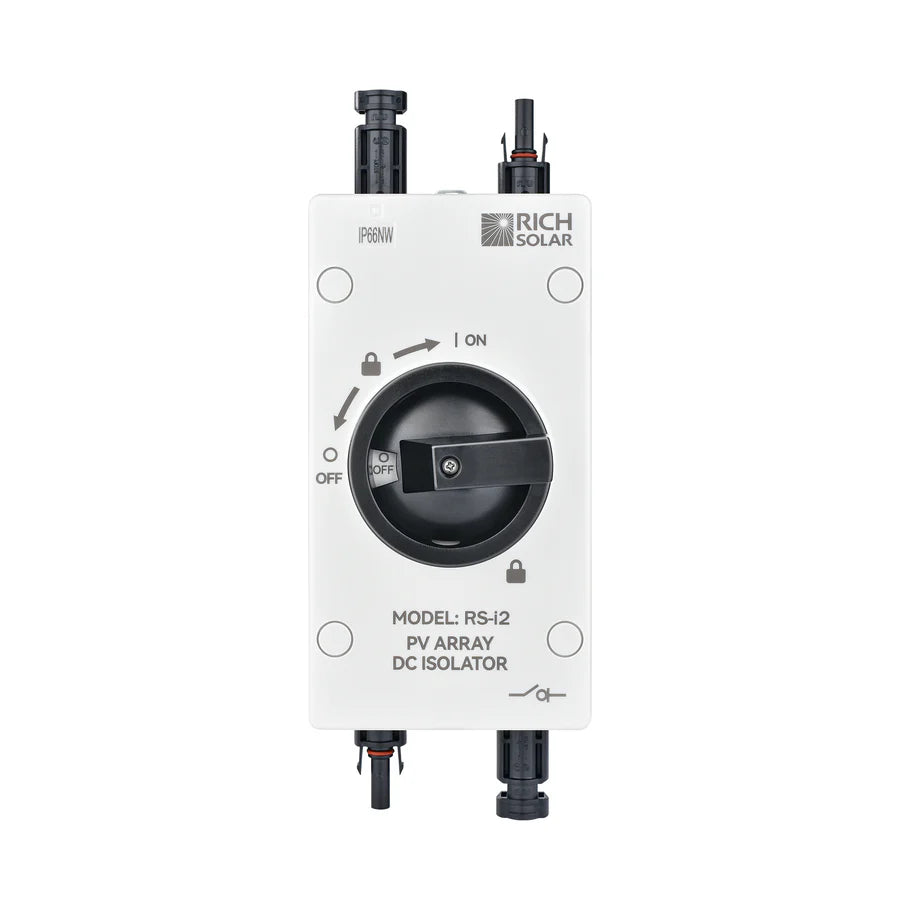

Solar PV DC Quick Disconnect Switch Features

• Solar PV DC Quick Disconnect Switch: Quickly disconnect DC power from your solar array to the charge controller, batteries and/or inverters.
• Outdoor rated
• Off and on grid applications.

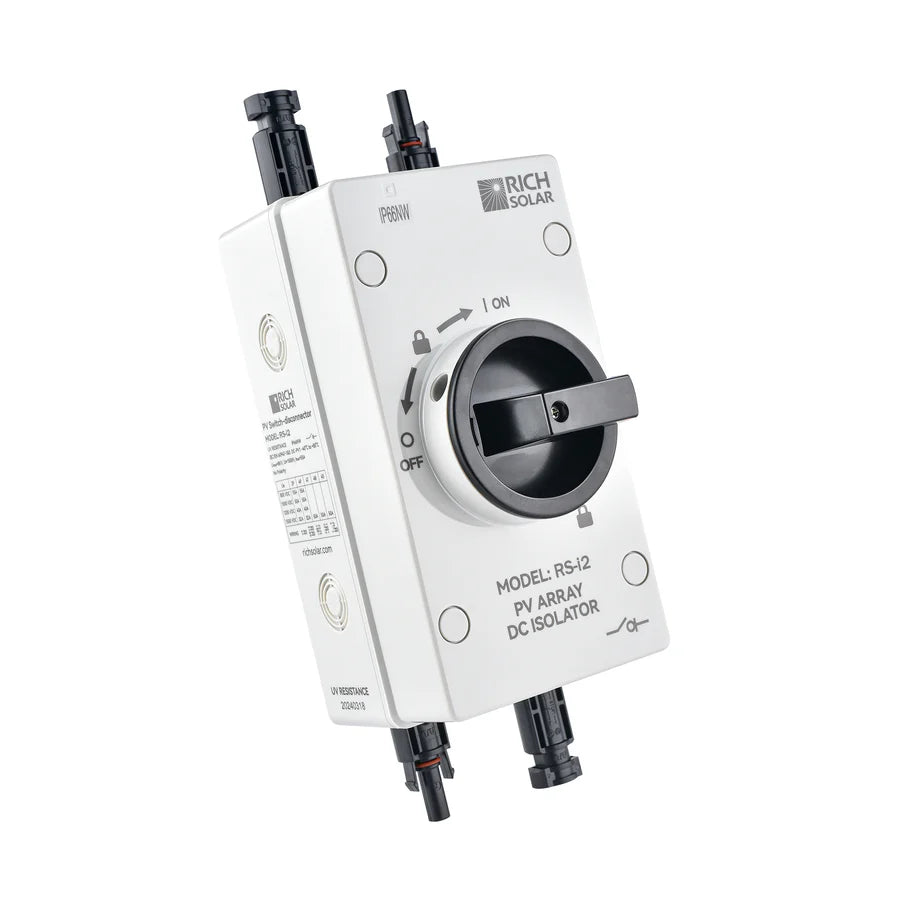

• Isolated SAFE-LOCK with three rotational positions, reducing the risk of tampering.
• Single pull double throw 1 IO.
• Ensures the disconnection of load circuits and suppression of the arc in under 3 mil secs.
• Lock out option.

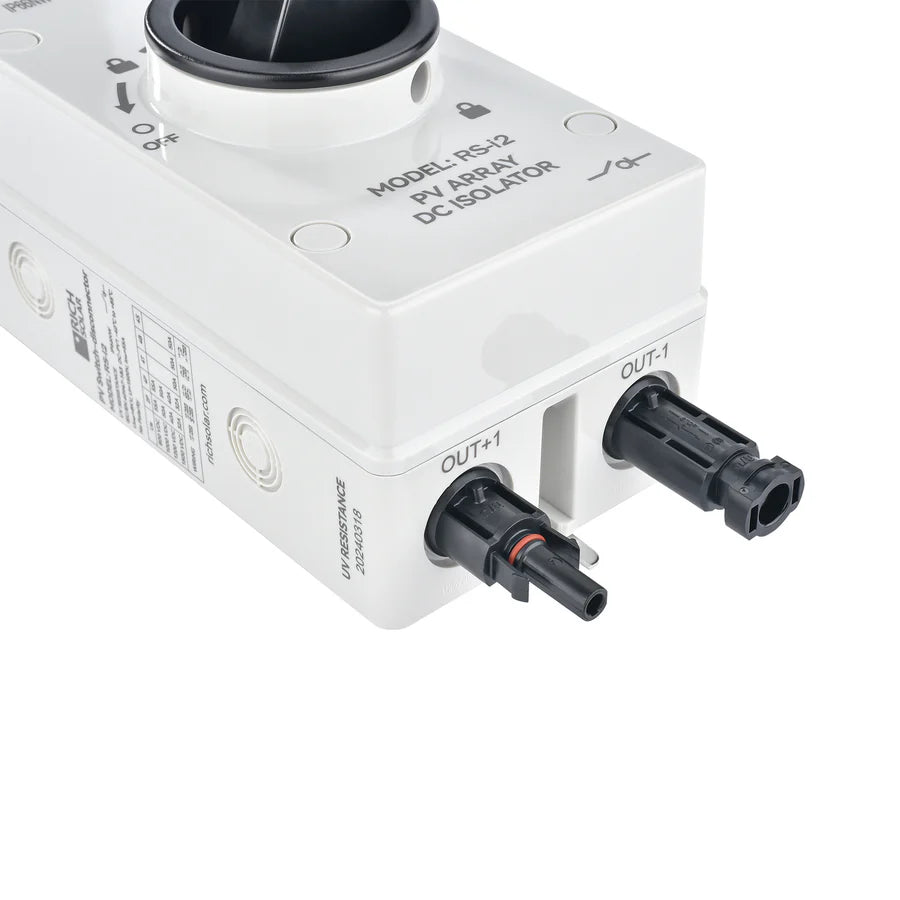

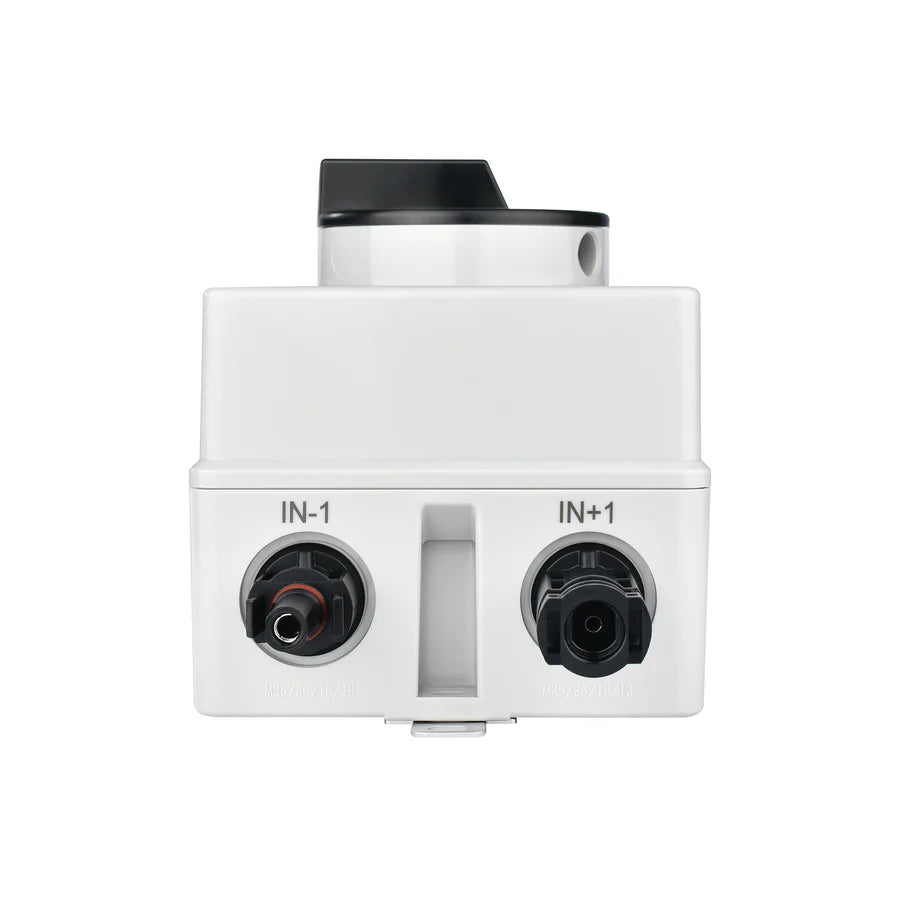

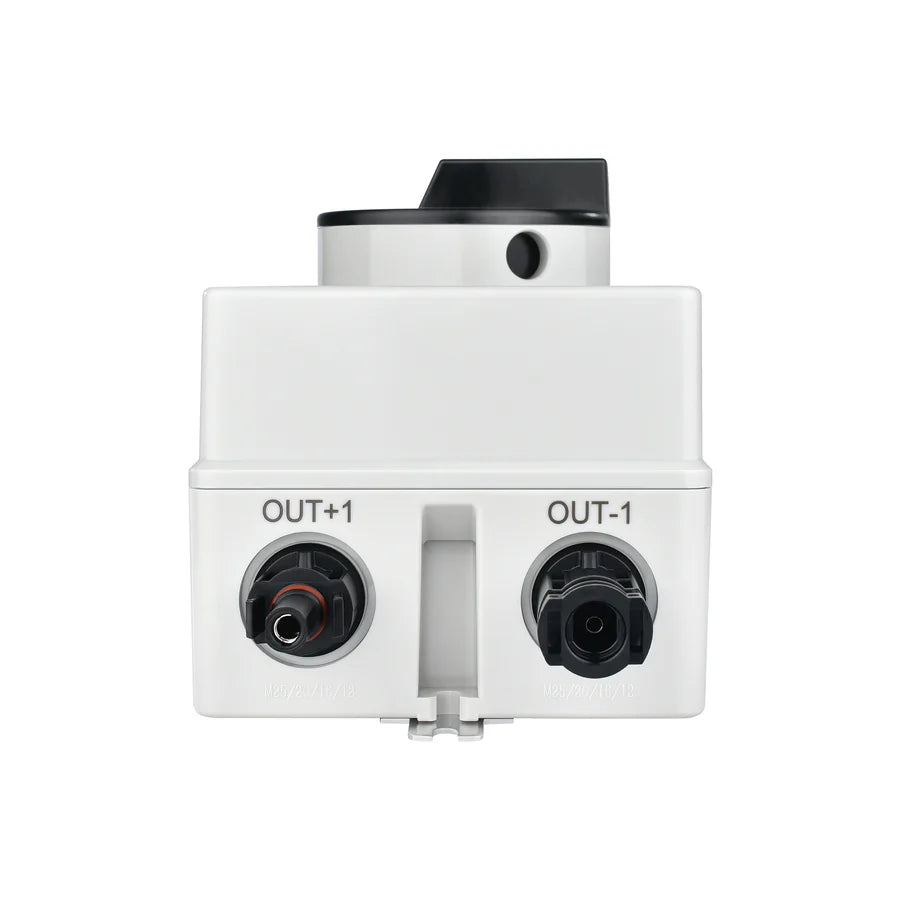

• Output and input connections are built for easy set up and installation.

Tech Specs

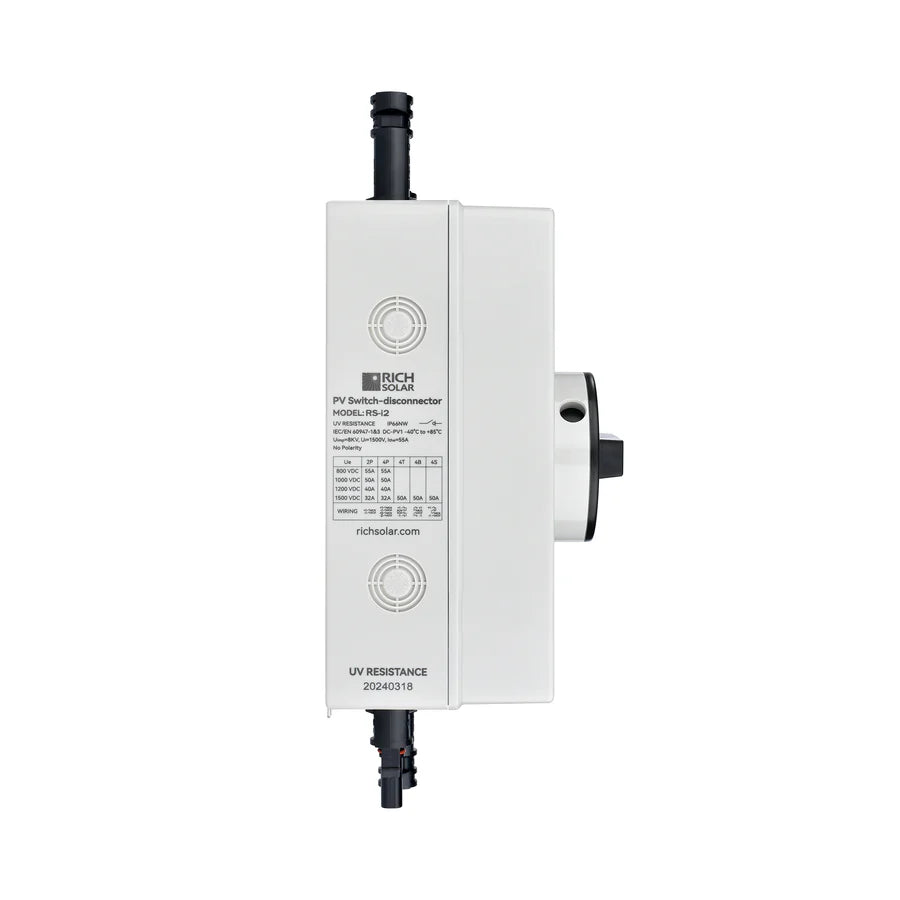

• Standard: Up to 1500 volts @ 32 amps
  2 pole and 1 string
  TUV, SAA, CE, IP certified & ROHS compliant
  Non-corrosive
• Waterproof: IP66NW
  Arc time <3ms
• Operating Temperature: -40℉ to +185℉ (-40℃ to +85℃)
• Warranty: 10 years warranty

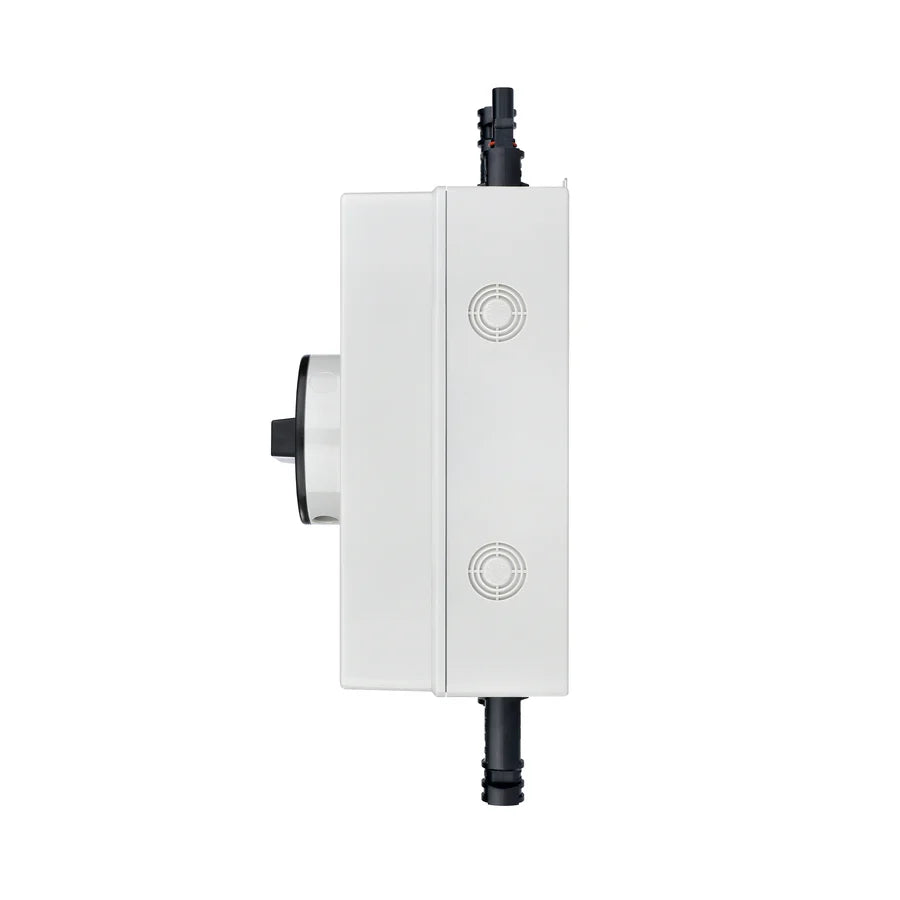

• Dimensions(HxWxD): 9.8x3.8x4.3in / 249.4x97.6x110 mm
