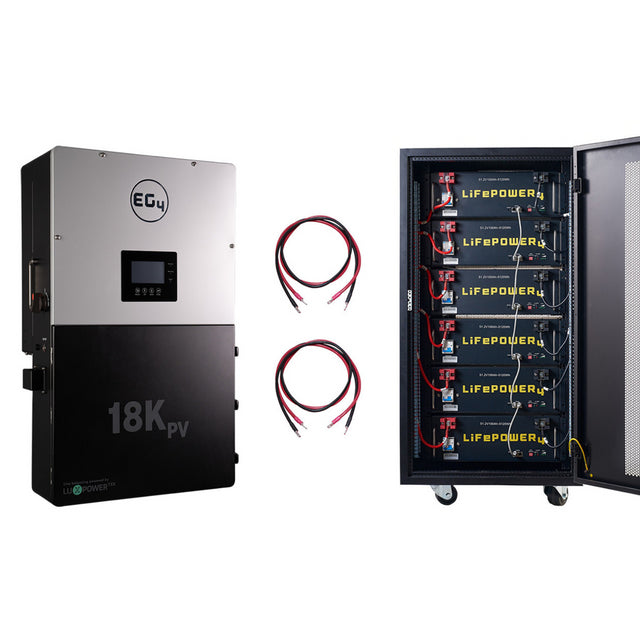

EG4 18kPV Hybrid Inverter | EG4-18kPV-12LV | 48V Split Phase 120/240VAC | UL1741, CEC

This innovative hybrid inverter combines the functionality of a grid-tied and off-grid system together while eliminating the need for charge controllers or transformers to create a convenient, independent, all-purpose powerhouse. It also boasts an extensive list of certifications and compliances, helping it meet typical electrical regulations.

Features

• 18,000W PV input, 12,000W continuous output
• Stackable with parallel units
• Closed loop communication with EG4 batteries
• Overload, short circuit, and over-temperature protection
• Line balancing
• Plug-and-play installation
• Manages power from energy storage and grid simultaneously
• 120/240V split phase
• Fully outdoor rated (avoid direct sunlight)
• ETL & cETL certified
• Safety: UL1741SB, NEC 2020, CSA 22.2
• Grid connection: IEEE 1547, Hawaii Rule 14H, California Rule 21
• Outdoor Rating: NEMA 4X / IP65

EG4 LL Lithium Battery (V2) | 12V 400AH | Server Rack Battery

Composed of (16) UL listed prismatic 3.2V cells which have been tested at 7,000 deep discharge cycles to 80% DoD - fully charge and discharge this battery daily for over 15 years without issue. Reliable and rigorously tested, with a 99% operating efficiency.

Features

• 7,000 deep charge/discharge cycles
• 15-year life at 80% depth of discharge, up to 20 years
• High energy density server rack battery form factor
• Selectable closed-loop inverter communications (Victron, EG4)
• Parallel up to 16 batteries, up to 80 kWh
• Built-in EG4 Smart BMS for voltage, current, temp, and health management
• Easy battery bank expansion
• On-board LCD screen
• Lifetime firmware updates
• 10-year warranty, supported and serviced in Texas

EG4-LifePower4 V2 Lithium Battery | 48V 100AH | Server Rack Battery | UL1973, UL9540A | 10-Year Warranty

The EG4 LiFePOWER4 48V V2 battery maintains the sturdy design and high performance of the original model, while adding new features for an improved user experience and better system integration. This Lithium Iron Phosphate (LiFePO4) battery is composed of 16 UL recognized prismatic 3.2V cells in series, offering over 6,000 deep discharge cycles at 80% Depth of Discharge (DoD). It has a nominal voltage of 51.2V, an energy capacity of 5.12kWh, and an internal 100A Battery Management System (BMS).

Features

• Retains robust architecture and high performance
• Composed of 16 UL recognized prismatic 3.2V cells in series
• Tested for over 6,000 deep discharge cycles at 80% DoD
• Nominal voltage: 51.2V, Energy capacity: 5.12kWh, Charge capacity: 100Ah
• New 10-year warranty
• Internal 100A Battery Management System (BMS) with communication on/off switch
• Protocol 6 DIP switch for inverter and battery customization; supports up to 64 batteries in parallel
• Enhanced terminal connections, CAN bus and RS485 ports, E-Stop functionality, dual fire arrestors
