This in-line fuse is designed to safeguard your solar system by providing overcurrent protection. It is rated for up to 15 Amps, making it suitable for a range of solar applications. The fuse holder is designed to be waterproof, ensuring the fuse remains protected even in wet conditions, such as rain or high humidity. Installing the in-line fuse is quick and easy. Simply connect it in-line between the solar panel and the charge controller or other components in your system. The fuse holder is equipped with secure and weather-resistant connections to ensure reliable performance.

Why would I need BougeRV 30A SOLAR FUSE?

PHOTOVOLTAIC FUSE:This solar fuse is a great added protection for your solar panel, solar controller, and other appliances of your photovoltaic system. It will quickly interrupt the circuit once the fuse's rated amperage is exceeded, which can avoid damage to the photovoltaic appliances.

EASY INSTALL and STABLE:Suitable for most solar connectors, plug, and play. With the built-in lock on the male connector, this solar inline fuse connector can keep stable work outdoors. Made with quality PPO, this solar fuse connector is resistant to UV and aging.

WATERPROOF:With an IP67 protection degree waterproof ring on the male connector, this solar fuse connector can keep you worry-free for rainy days.

DEDICATED PV FUSE:Certified by TÜV and CE, this solar fuse connector is a great choice to protect against a power surge. With the solar connector on two ends, there is the ceramic fuse tube in the middle, it is suitable for solar panels, solar cables, and solar controllers.

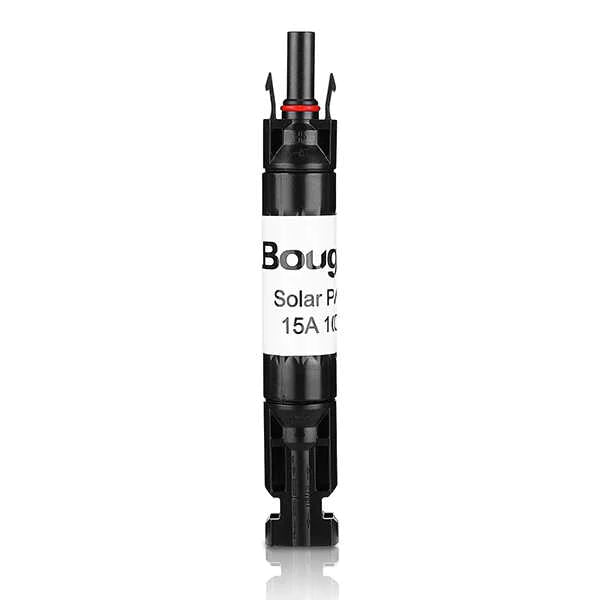

BougeRV 15A Solar Inline Fuse Connector Specification:

• Dimension: 5.1 × 0.71 × 0.71 inch
• Weight: 45g/1.59oz
• Ambient temperature range: -40℉ to 194 ℉(IEC)
• Degree of protection: IP67
• Contact material: Copper tin-plated
• Insulation material: PPO
• Locking system plug connectors: Snap-in
• Flame class: UL94-HB / UL94-V0
• Rated voltage: 1000V DC (IEC)/800V DC (UL)
• Rated current: 15A
• The contact resistance of plug connectors: 0,5 mΩ
• Cable Size: 2.5 mm², 4 mm², 6 mm²(10awg, 11awg, 12awg, 13awg)

IP67 WATERPROOF

There is an IP67 protection waterproof ring on the male connector, keep stable working from rainy days.

ELIMINATE ARC FAULT

Ceramic tube, filled with fine quartz sand. Can cut the circuit in no time when the power surge occurs.

KEEP STABLE WORKING

With the built-in lock on the male connector, this solar fuse can keep stable working outdoors at all hours.

Specifications

• SKU ISE080
• Dimension 5.1 × 0.71 × 0.71 inch
• Weight 45g/1.59oz
• Ambient temperature range -40℉ to 194 ℉(IEC)
• Degree of protection IP67
• Contact material Copper tin-plated
• Insulation material PPO
• Locking system plug connectors Snap-in
• Flame class UL94-HB / UL94-V0

Still Have Questions About BougeRV 15A Solar Fuse Holder? Give us a call today 1-877-242-2792
