Looking to expand your solar panel system and connect multiple panels together? BougeRV's Solar Y Branch Connectors are here to help! These connectors are designed to split the output of a single solar panel into two separate branches, allowing you to connect multiple panels in parallel.

With their high-quality construction and reliable performance, these Y-branch connectors ensure a secure and efficient connection, maximizing the power output of your solar panels. Whether you're setting up a new solar installation or expanding an existing one, BougeRV's Solar Y Branch Connectors are the perfect solution for creating a robust and efficient solar panel array.

What's Included With Your Order?

• 2 Pair of Y Branch Solar Panel Cable Connectors
• Free Shipping
• Lifetime Customer Support (Email, Live Chat & Phone)

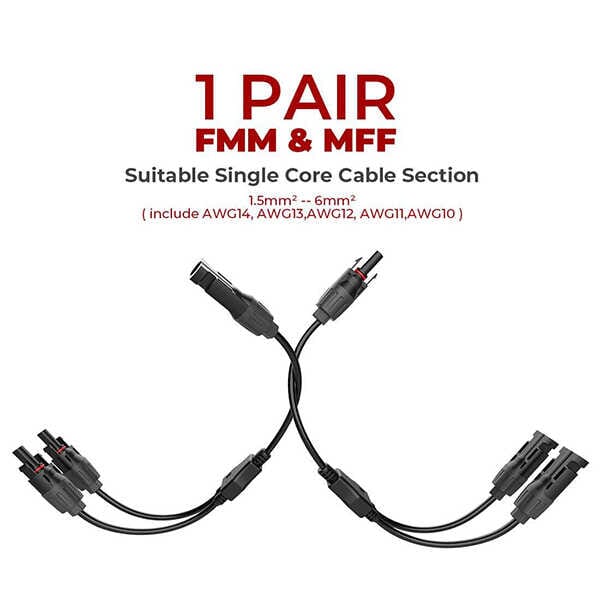

Solar Connectors Y Branch Parallel Adapter Cable(2 Pairs 1 male to 2 female and 1 female to 2 male)

Main Technical Specification: -Rated Current:20A -Rated Voltage: DC1000V

The waterproof ring on connection is perfect to seal out water and dust to prevent corrosion

Suitable Single Core Cable Section: 1.5mm² -- 6mm²

Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument

Insulation Material: PPO

• Rated Current: 20A(4mm²
• Rated Voltage: DC1000V
• Contact Resistance: ≤5mΩ
• Insulation Resistance: >500mΩ
• Operating Temperature range: -40℃ until+90℃
• Degree of Protection: IP67
• Flame Class: UL94-V0
• Safety Degree: Ⅱ
• Suitable Single Core Cable Section: 1.5mm² -- 6mm² ( include AWG14, AWG13,AWG12, AWG11,AWG10 )

PRODUCT SPECIFICATIONS

• SKU ISE002-B021
• Rated Current 20A(4mm²
• Rated Voltage DC1000V
• Contact Resistance ≤5mΩ
• Insulation Resistance >500mΩ
• Operating Temperature range -40℃ until+90℃
• Degree of Protection IP67
• Flame Class UL94-V0
• Safety Degree Ⅱ
• Suitable Single Core Cable Section 1.5mm² -- 6mm² ( include AWG14, AWG13,AWG12, AWG11,AWG10 )

Still Have Questions? Give us a call today 1-877-242-2792
