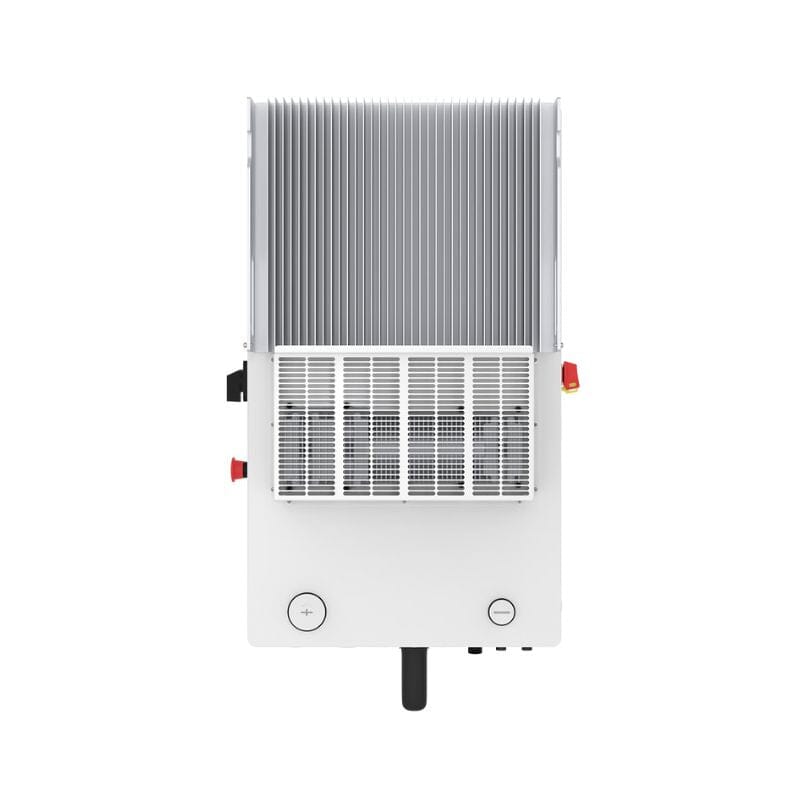

Solis Residential High Voltage Hybrid Inverter Single Phase

This Hybrid Inverter Single Phase able to supply a wide range of continuous backup power in the event of a grid outage

Highly Flexible

• Generates 120/240V backup power without an external autotransformer
• Compatible with multiple battery brands, providing up to 150kWh of storage capacity per inverter
• Multiple energy storage working modes to satisfy various use cases and lifestyles
• Allows up to ten (10) inverters to be stacked in parallel for maximum scalability and flexibility

Efficient Performance

• Hybrid Inverter Single Phase Maximum PV input current up to 16A per string
• Generates up to 50A/11.4kW of continuous backup power with up to 76A for ten seconds
• Backup transfer (switch) time is <10ms
• DC to DC battery charging for optimal use of PV-generated energy
• Optional module-level optimization & monitoring

Intelligent Design

• SunSpec modbus certified with the latest SunSpec models
• Supports operation in parallel with a generator and allows teh generator to function as the grid source if utility power is lost
• Optional integrated revenue-grade meter and external energy meter for production & consumption monitoring and export power control
• Offers all of the smart inverter functions detailed in IEEE 1547-2018
• Utilizes an energy management system that maximizes efficiency and offers multiple modes of operation for performance customization
• SolisCloud allows for remote system troubleshooting, firmware upgrading, and configuration, reducing O&M costs
• Bi-direcitonal capacity can allow teh battery to charge fromt eh grid

Safe and Reliable

• UL 1741SA/SB and UL9540 certified
• California Rule 21 and HECO rule 14H Compliant
• Sophisticated alarm system ensures the system operates only under safe conditions and warns you immediately if there is an issue
• Third-party tested and validated for product reliability
• A stardard 10-year standard warranty is included
• NEC 2020 compliant with various integrated RSD transmitter options are available for module-level rapid shutdown
• External RSD & Emergency power off switch options are also available

Solis S6 Hybrid Inverter 5kW Specifications

DC Input (PV)

• Max. Input Voltage: 600 V
• Rated Voltage: 380 V
• Start-up voltage: 80 V
• MPPT voltage range: 80-520 V
• Max. input current per string: 16 A
• Max. short circuit current per string: 25.6 A
• Number of MPPTs/Number of strings per MPPT: 3/1

Energy Storage

• Battery type: Lithium ion
• Battery voltage range: 120-500 V
• Maximum charge/discharge current: 25 A
• Battery communication: CAN/RS485

AC Output (Grid)

• Rated output power: 5kW
• Max. apparent output power: 5kVA
• Rated output voltage: 240 V
• Rated frequency: 60Hz
• Rated output current: 20.8A
• Max. output current: 20.8A
• THDi: <3%

AC Input (Grid)

• Input Voltage range: 211-264 V
• Max. input current: 31.2A
• Frequency range: 58.8-61.2 Hz

General Data

• Dimensions (WxHxD): 19.23 x 32.97 x 8.62 in (488.5 x 837.5 x 219mm)
• Weight: 65.16lbs (29.56kgs)
• Mounting Type: Wall bracket
• Topology: Transformerless
• Self consumption (night): <20W
• Operation temperature range: -13F to 140F (-25C to 60C)
• Ingress protection: TYPE 4X (IP66)
• Noise emission: <30 dB(A)
• Cooling method: Natural Convection
• Max. operation altitude: 13,120ft (4000m)
