• NOTE : TWO INVERTERS are required for split phase operation, as well as a parallel kit for each inverter. (One inverter per phase) -- Parallel Kit sold separately
• USA Stock is import duty free!
• USA Returns (If you buy from Taiwan, expect to pay hundreds of dollars in return shipping) USA 1 yr warranty.
• USA Tech Support
• Now supports Wifi remote monitoring on the www. (on ebay search “seller:usa-mpp-solar” to find our WiFi Box Listing)

120vac 2400W 24V hybrid solar inverter + MPPT solar charger 80A, (PV input 145Vdc) + battery charger 60A

• Requires minimum 2 units in parallel to create split phase (120V/240V)
• Grid Injection feature is available by feeding excess PV power to grid

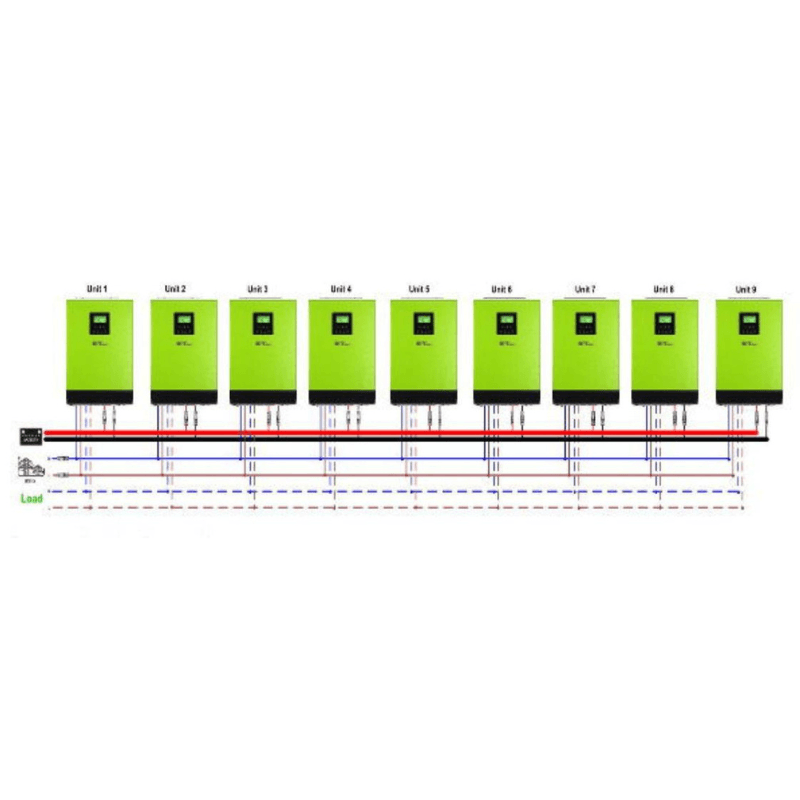

• Stackable — parallel up to 9 units
• Single 80A max MPPT input
• Supports generator input
• Programmable parameters
• Max PV input power up to 2KW
• FREE monitoring software
• LCD Display + LED indicators

Specifications

Standard Rating

• Continuous Output: 2400W
• System DC Volt: 24VDC
• Split Phase Capable: YES (requires minimum 2 units in parallel)
• Maximum Parallel: Up to 9 units

PV Input / Solar Charging

• Max PV Input Power: 2000W
• Max PV Input Volt: 145VDC (open circuit Voc)
• MPPT Range: 30-115VDC
• Number of PV Input: 1
• Max Charging Current: 80A

Battery Output Mode

• Output Waveform: Pure Sine Wave
• Nominal output Volt: 101/110/120VAC, Single phase
• Frequency: 50 / 60 Hz, auto sensing
• AC Input Transfer Relay: 40A
• Max Efficiency: >90%
• Max Utility Charging: 60A
• Max Utility + Solar Charging: 140A

Environmental / Mechanical Specs

• Communication Port: USB/Dry Contact
• Operating Temp.:0-50°C

• Operating Humidity: 0-90% RH (No Condensing)
• Dimension: 468 x 295 x 120
• Net Weight: 11kg
