10 Gauge Solar Panel Extension Cables Wire

Simply choose the desired cable length (feet) from the selections above.

Our PV solar panel extension cable comes with standard solar adapters on both ends. No need to try and splice and dice your own cables, these come ready to go.

Perfect for any solar panel to solar panel connections as well as solar panels to solar generators! If you only need one end of connections, easily remove the connectors from the other end and keep them as an extra set!

Watch how to connect your cabling to a solar panel:

What is included with your order?

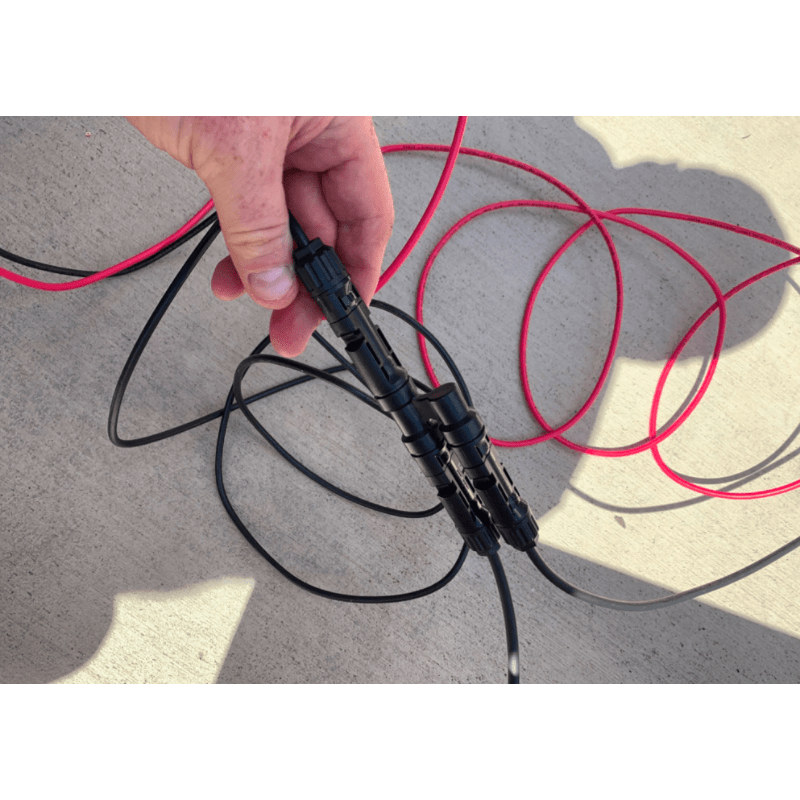

• One piece of black solar cable & one piece of red solar panel cable terminated with solar panel connectors.

• You can choose between several length options, all options are 10 AWG. Use the option selection above to select length (feet).

How To Use PV Extension Cable & Branch Connectors With Solar Generators:

10 Gauge Solar Panel Extension Cables Technical Specifications:

• Wire Thickness: 10 AWG
• Stranding: 10
• Insulation Thickness: 0.06 inches
• Nominal Outer Diameter: 0.22 inches
• Approximate Net Weight : 17.54 ft/lbs
• Ampacity 90ºC Wet/Dry: 40A
• Conductors: Fully annealed stranded bare copper per ASTM B3. Class B Stranding
• Insulation Jacket: Chemically cross-linked polyethylene

Industry Standards and Approvals:

• UL Listed as XLP USE-2 or RHH/RHW-2
• RoHS Compliant
• Wet/Dry Temperature: -40C to 90C
• Sunlight resistant
• Direct burial
